0.6m semi automatic screen printer, stencil printer, solder paste printer machine for LED

Product model: OL-1068
SMT pick and place machine
1, Use the servo system for easy and accurate positioning.
2, Imported linear high-speed guide rail and imported speed control motor to drive the scraper seat to ensure printing accuracy.
3, The printing blade can be rotated up to 45 degrees to facilitate the cleaning and replacement of the printing stencil and scraper.
4, The blade holder can be adjusted back and forth to select the appropriate printing position.
5, The combined printing platen has fixed groove and PIN, easy to install and adjust, suitable for single and double panel printing.
6, The school version uses steel mesh to move, combined with printing (PCB) X, Y, Z. Correcting fine-tuning is quick and easy.
7, PLC and touch screen man-machine interface control, simple, convenient and more suitable for human-machine dialogue.
8, One-way and two-way, multiple printing methods can be set.
9, With automatic counting function, it is convenient to produce output statistics.
10, The blade angle is adjustable, steel scraper and rubber scraper are suitable.
11, The man-machine interface has a screen saver function to protect the life of the human-machine interface.
12, With a unique programming design, the printing blade holder is easy to adjust.
13, Printing machine speed man-machine interface display, can be digitally adjusted and controlled.

The print holder can be lifted up to 45° for easy loading and unloading and adjustment of the scraper and cleaning stencil
Printing scraper can be adjusted according to the needs of printing, the left and right tilt angle can be adjusted ±15
Scraper running scraper moves left and right with imported speed control motor and precision slide rail to make printing smooth
Double scraper pressure adjustable
Substrate fixing method: positioning pin or shape

Technical parameters:

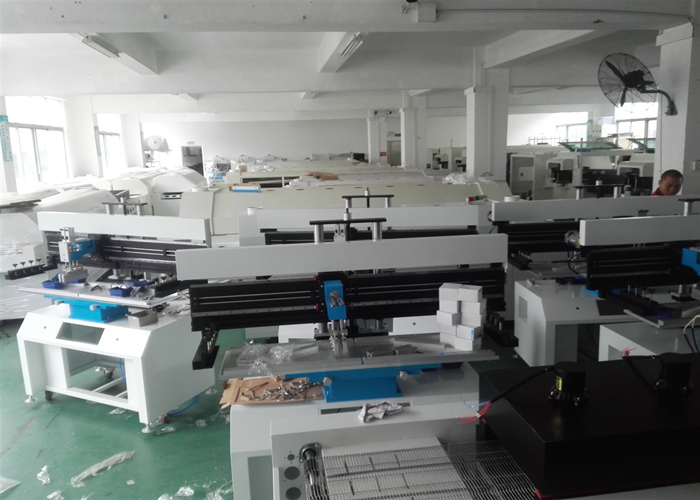

Factoty solder paste stencil printer picture:

Shenzhen Wanbo Hi-tech Co,. Ltd was established in 2012. The company owns standard industrial factory building of area 3800m² which located in Bao’an District of the beautiful city Shenzhen.

The company is mainly engaged in research and development, production, sales on Placement machine and SMT peripheral equipment. At present, the company's existing mature products are 6 heads standard placement machine, 6 heads LED online type full automatic pick and place machine, 8 heads placement machine, granite platform chip mounter, multifunction pick and place machine, 10 heads LED high speed placement machine, 12 heads copper wire light high speed smt pick and place machine.

Another branch of the company produces Wave Soldering machine, smt reflow oven, smt stencil printer, solder paste printing machine, connection PCB conveyor tables, PCB uploader and downloader, and peripheral equipment. The company now has R&D Department, Production Department, After-sales Service Department, Sheet Metal Processing Department, and Peripheral Plant. The R&D Department is mainly composed of the software development department and the structure design department. Company products quality stable, solid structure, high speed etc features, has been trusted and supported by old and new customers for many years.

High level products quality, excellent design solution, careful to top service is company development policy.

Our company is backed by sophisticated technology, and reliable quality, efficient service for the company's development philosophy. Sincere consideration for customers is fundamental to the Development of Enterprises. A pragmatic attitude makes the higher step development of the company.
