Reflow oven, reflow soldering machine price for smt, smd reflow oven, used reflow oven

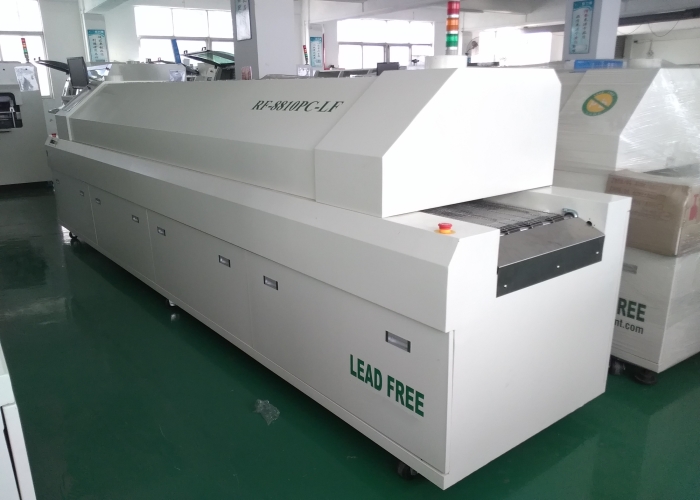

reflow oven 8 zones for smt smd soldering

model 8810PC

Product name: 8 temperature zone computer reflow soldering oven

Product Features:

1. All temperature zones are heated up and down separately; independent hot air circulation, independent temperature control, temperature control accuracy of each temperature zone ± 1 °C.

2. Modular heating structure, effectively preventing the influence of airflow in the temperature range, ensuring uniform heating of components, lateral temperature deviation <±2°C.

3. The upper furnace body is opened by pneumatic lifting, which is safe and reliable for easy cleaning of the furnace.

4. Special long-life nickel-nickel heating wire type heat source, with sufficient power and rapid heating, from room temperature to constant temperature less than 20 minutes.

5. It adopts imported high-speed air motor direct drive to carry out thermal cycle, low noise, low vibration and high thermal cycle efficiency.

6. Adopt PLC industrial control product upper and lower machine control, with first-class stability.

7. It has a double synchronous transmission system for rail chain and mesh belt and a lubrication system.

8. The guide rail is made of special high-quality aluminum alloy with high hardness and high strength, small deformation and high precision.

9. With delay switch protection function to prevent deformation of transmission parts due to uneven cooling.

10. It has power-off protection function to ensure normal output of PCB board after power failure without damage.

11. With over temperature sound and light alarm and emergency braking system.

12. Simplified and traditional Chinese MMI operation interface and artificial intelligence software control, greatly facilitating user's use

13. Complete online temperature test curve and analysis, storage, recall and printing functions.

14. Dedicated temperature acquisition module with high precision and fast speed, with cold junction compensation.

15. Double cooling zone design for lead-free process soldering.

16. With timed automatic shutdown function.

17. Flux recovery unit, no filter design, effectively extending the furnace cleaning cycle.

Product parameters:
