| Brand Name : | JUKI |
| Model Number : | FX-3 |
| Certification : | QC |
| Price : | RMB50000-150000 |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 50pcs/month |
Equipment name: JUKI FX-3, JUKI FX-3L placement machine, second-hand JUKI FX-3 placement machine, FX-3RL used placement machine, JUKI FX-3RAL module 24-head high-speed placement machine, FX-3RA large high-speed modular placement machine
Introduction to the device

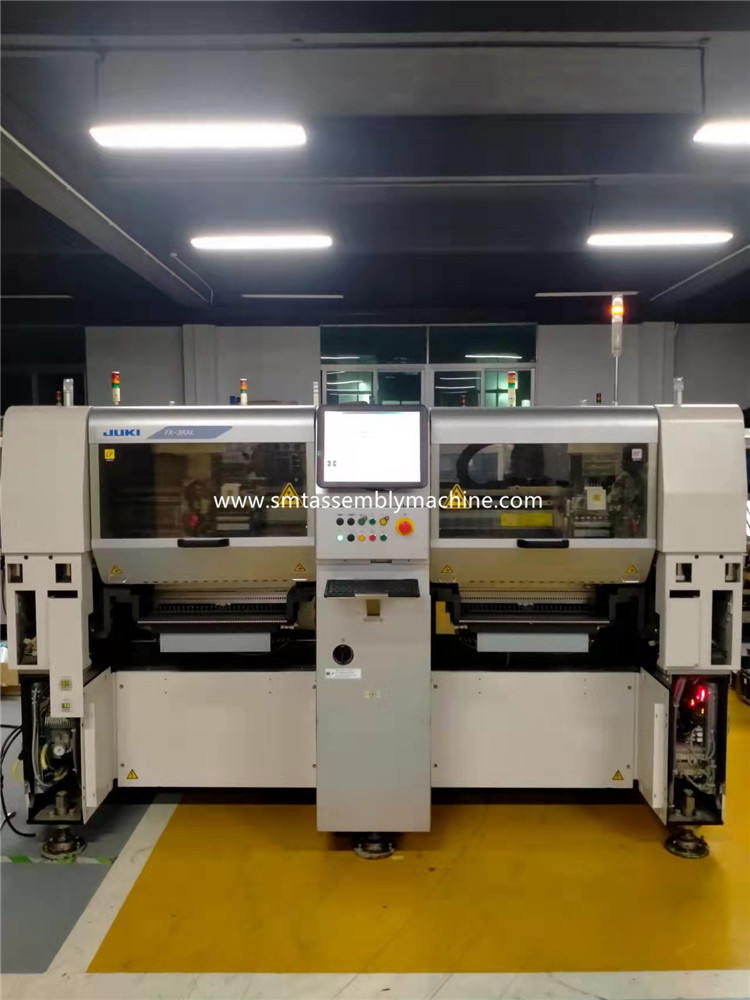

JUKI FX-3RL placement machine
peculiarity
★ Chip element 90.000CPH (0.040 sec/chip, optimal conditions) 66.000CPH chip (according to IPC9850) 0402 (01005) chip - 33.5mm square element (or diagonal length 47mm)
★ Laser identification: ±0.05mm (soil 3o)
★ Using a new linear servo motor and fully closed-loop control ★, it is possible to produce ultra-long substrates for LED lighting products, etc
★ The electric belt feeder and the mechanical belt feeder are switched ★by a unified changer, and the structure of 2 tables× 4 shaft arms× 4 placement heads, and 24 suction nozzles
★6. The nozzle multi-kinetic laser placement head is uniformly recognized ★in high-speed movement (on-the-fly), and the 15-inch large touch display is displayed
JUKI FX-3 parameter
| Component placement speed (chip components) | Under optimal conditions: 0.040 sec/chip (90,000CPH) *4 laser mount heads× (24 nozzles) |
| Number of feeders: | Up to 120 pcs (when using 8mm belt feeder) |
| *Placement speed varies depending on conditions | |
| Model name | High-speed modular placement machine FX-3RL |
| Substrate size | Module height L substrate (410×360mm) ○ 510×360mm) * ○ for L-wide substrate XL-type substrate (610mm×560mm) ○ |
| Component height | 6mm specifications ○ |
| Component size | Laser recognition 0402 (imperial 01005) ~ □33.5mm |
| Component placement speed (chip components) | Chip components Optimal conditions 0.040 sec/chip (90,000CPH) (IPC9850) 66,000CPH |
| Component placement accuracy | Laser Identification ±0.05mm (Cpk≧1) |
| Component placement type | Up to 120 types (converted to 8mm belt) |
| power supply | Three-phase AC200~415V |
| Rated power | 8.5KVA/9.5kva |
| Use air pressure | 0.5±0.05Mpa |
| Air consumption (standard state) | Maximum 150L/min |
| Device size (W×D×H**) | L substrate 2,650×1,650×1,530mm L-wide substrate with * 2,880×1,650×1,530mm XL type substrate 2,880×1,1850×1,530mm |
| weight | L, L-wide substrate approx. 3,500kg XL-type substrate Approx. 3,750kg |
