The function of AOI testing equipment is to detect PCBA board control defective products.
After the wave soldering of the DIP plug-in: more tin, less tin, tin hole, short circuit, pin not out, etc.
After SMT furnace: missing parts, misalignment, wrong parts, polarity reverse, breakage, pollution, less tin, more tin, short circuit, virtual soldering, etc.
Equipment separation line machine and online machine.
Offline models: X1 detection patch products, X3 detection plug-in products;
Online models: X5 camera photo detection patch products, X6 camera photo detection plug-in products.

AOI function: AOI effective detection rate: over 99% (manual detection rate: about 70%);
Reduce labor: 2-4 people per production line, high detection efficiency;
Through the SPC function, process defects can be accurately counted and effectively controlled;
The stability is much higher than manual labor, and long-term use can significantly reduce the overall cost;
It can enhance the comprehensive strength of the company and effectively enhance its overall competitiveness.

The approximate classic models of JUKI SMT machines are as follows:
FX-1 FX-3 FX-3R KE-750 KE-760 KE-2010 KE-2020 KE-2030 KE-2050 KE-2060
KE-2070 KE-2080 RX-6 RX-
7 FX-3RL FX-2 KE-3010 KE-3020 JX-100 JX-200 JX-30OLED JX-35OLED RS-1 RS-1R RX-7R JM-10 JM-20 JM-100；
JUKI Full Series SMT Machine KJ Series
KE series KE-730/750/760, KE-2010/2020/2030/2050/2060/2070/2080 KE-3010/3020
The FX series FX-1/FX-2/FX-3 is a high-speed machine
RX-6 RX-7 FX-3RL
JX series LED special placement machine JX-100 JX-200 JX-300LED JX-350LED
KD-2077 high-speed intelligent SMT machine RS-1
JUKI KJ-01 KJ-02 KJ01 KJ02

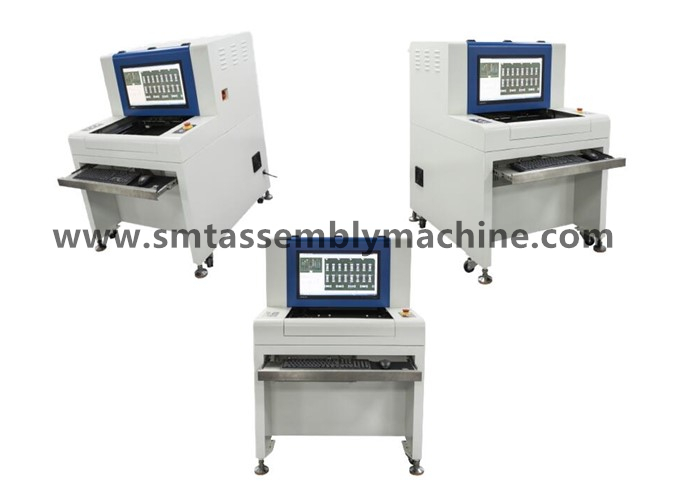

SZ-X1/X3 Technical parameters of offline AOI optical inspection equipment

Tip: The missing frame of the resistor is the same detection frame as the wrong part frame, which mainly detects silk screening.
